sera High Pressure and Nozzle Technology
For High Pressure Technology please contact:
sera Vertriebsservice Süd GmbH
Dr. Ernst-Derra-Straße 8
94036 Passau
Deutschland
Tel.: +49 851 956099-0
Fax: +49 851 956099-20
sera Technology Austria GmbH
Etzelshofen 135
A-4975 Suben
Österreich
Tel.: +43 7711 31777-0
Fax: +43 7711 31777-20

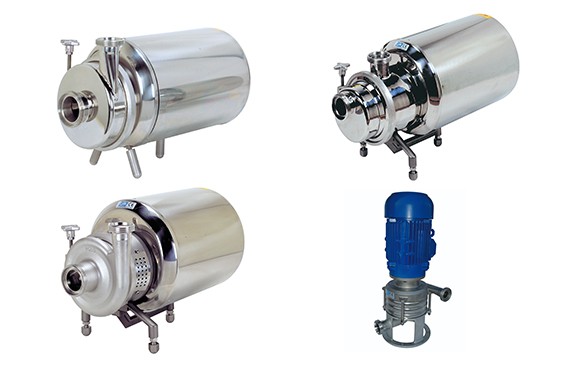

STAINLESSS STEEL CENTRIFUGAL PUMPS
We have a wide range of stainless steel centrifugal pumps, with both open and closed impellers, normal priming and self-priming. They are used in particular in the food, pharmaceutical, chemical and water treatment industries. The components are all modular. All parts that come into contact with the product being pumped are made of AISI 316 and AISI 316L stainless steel.
All certificates required for the food and pharmaceutical industries (e.g. FDA certificates) are in place.
RANGE OF APPLICATIONS
- Food industry
- Drinks industry
- Pharmaceutical industry
- Water treatment
- Chemical industry
MATERIALS
The high quality of the materials guarantees long-term, operationally reliable use.
PUMP BODIES AND VALVES
Stainless steel 1.4401 and 1.4404
SEALS
EPDM, Viton, PTFE
ADVANTAGES AT A GLANCE
- Wide range
- Extremely cost-effective
- Relatively short delivery times
DRIVE
The drives can be equipped with thermistors for use with frequency converters.
CERTIFICATES FOR EACH PUMP TYPE
- FDA
- EHEDG
- 3A

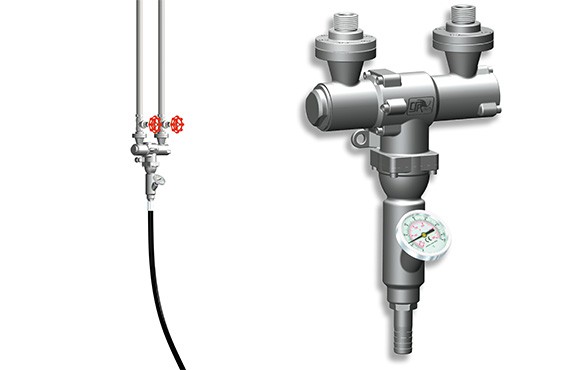

VAPOUR-WATER MIXER
The vapour-water mixer is an ideal and extremely cost-effective alternative to the much more expensive heat exchangers.
• Hot water at cheap prices (temperature adjustable from 35°C – 95°C)
• You save energy
• Safe, efficient, quiet and easy to install
• Made of stainless steel
• Suitable for the food industry
In order to ensure correct operation of the mixer, the pressure of the incoming vapour must be:
• at least 2.5 bar.
• the same as or a maximum of 3.5 times greater than that of the water for type M34
• the same as or a maximum of 2.5 times greater than that of the water for type M114

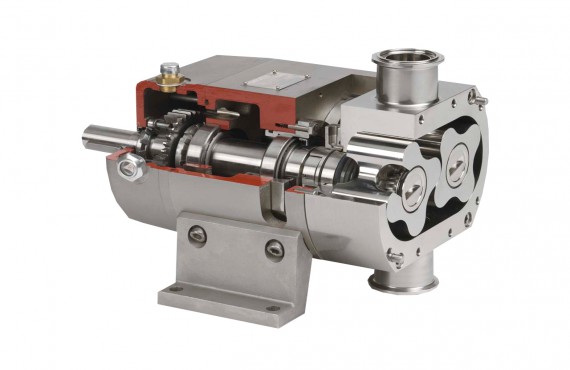

ROTARY PUMPS
We cover the entire range, from the very high-quality pump developed in accordance with the EHEDG (European Hygienic Engineering Design Group) and 3A Sanitary Standard, through to the standard low-cost variant. Our rotary pumps are particularly well-suited to pumping viscous products (with or without solid materials) very gently.
RANGE OF APPLICATIONS
• Watery to highly viscous media
• Gentle transport of lumpy goods
ACCESSORIES
• Heating and cooling jacket
• Mobile design available
• Overpressure protection with bypass
ADVANTAGES AT A GLANCE
• Hygienic design with minimal dead space
• Fast and easy cleaning, CIP and SIP-compatible
• Various rotary piston shapes
• Gentle pumping
• Flow rate adjustment by FC or adjustment gear possible
CERTIFICATES
FDA, EHEDG and 3A

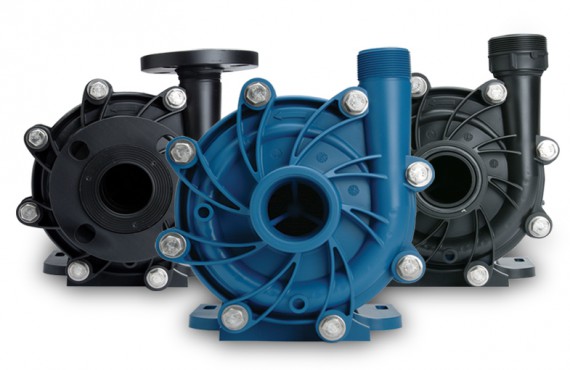

MAGNETICALLY COUPLED PLASTIC CENTRIFUGAL PUMPS
Our magnetically coupled centrifugal pumps have an established place on the market for chemical pumps that pump caustic media. All our pumps are designed and made for the precise operating point before delivery.
ADVANTAGES AT A GLANCE
• Advantages at a glance
• Extreme dry-running capacity for carbon storage
• Designed for the operating point – high efficiency
• Pumps with magnetic coupling and no mechanical seal
• High-efficiency neodymium-iron-boron magnet
• Model with ATEX certification
• 5-year manufacturer’s warranty (excluding wear parts)
MATERIALS
PP and PVDF

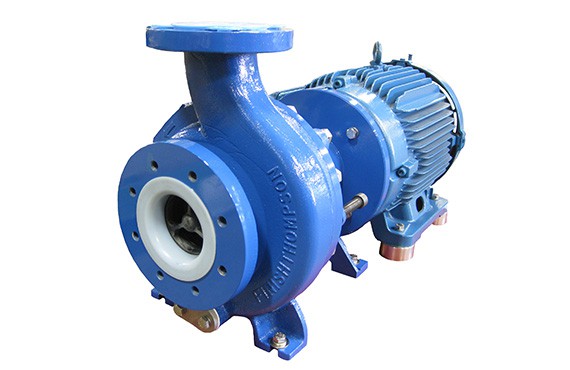

MAGNETICALLY-COUPLED LINED CENTRIFUGAL PUMP
MATERIAL
Spheroidal graphite iron with plastic lining made of DuPont Tefzel® (ETFE)
ADVANTAGES AT A GLANCE
- Dry run capability for carbon or Sic Dri-Coat storage
- ANSI flanges
- Designed for the operating point – high efficiency
- Pumps with magnetic coupling without mechanical seal
- High-efficient neodymium iron boron magnet
- ATEX-compliant design

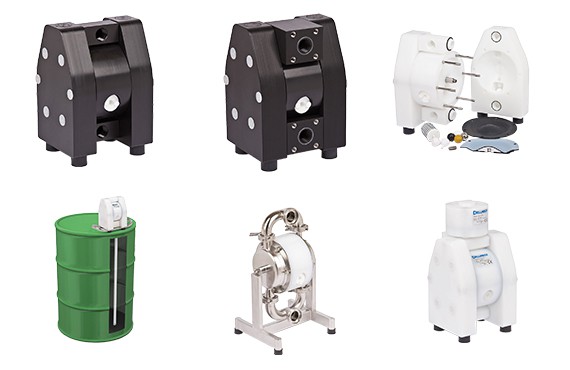

COMPRESSED AIR DIAPHRAGM PUMPS
Compressed air diaphragm pumps are cost-effective, leakage-free positive displacement pumps. They have two diaphragms linked by a connecting rod. Compressed air is supplied alternately to the air chambers behind the diaphragms through an air control valve, so that one diaphragm is pushed forward while the other is pulled back (pressure/suction stroke). The special design of the air control valve ensures that the pumps can always be started up safely and there are no inconvenient downtimes. The valve balls open and close with the stroke rhythm of the diaphragms.
.
ADVANTAGES AT A GLANCE
• Few components
• Pressure and suction connection adjustable
• Pump housing made of milled solid material
• Enclosed housing screws
• Inexpensive
• Leakage-free
• Overpressure protection
• ATEX-compliant
• Can be run dry
• Self-priming
• Self-adjusting pulsation damper in accordance with counter-pressure
• Barrier chamber system available
• High-pressure model (max. 16bar) available
• Electropolished hygiene model available
ACCESSORIES
• Flanged design
• Pulsation damper
• Carriage
• Barrel pump model
• Stroke counter sensor
• Membrane break monitoring
• Barrier chamber system
• Heating jacket for hygiene model
SAMPLE APPLICATIONS
• Drinks industry
• Shipbuilding
• Food industry
• Electroplating
• Dye and paint manufacturing
• Textile industry
• Chemical intake systems
MATERIALS
PE, conductive PE, PTFE, conductive PTFE, aluminium, grey cast iron and stainless steel
DIAPHRAGM
PTFE, EPDM
VALVE BALLS
PTFE, EPDM, special materials
SEALS
PTFE. EPDM

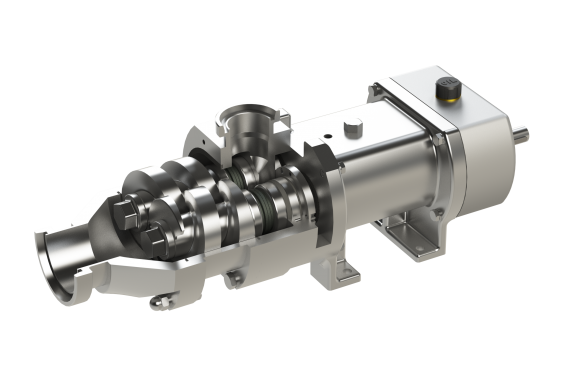

SCREW SPINDLE PUMPS
Because of their very large speed range, screw spindle pumps can be used both to convey viscous products and simultaneously as CIP cleaning pumps. Double screw spindle pumps are high-performance units which are becoming increasingly popular in the food sector in particular.
ADVANTAGES AT A GLANCE
• Maximum flexibility thanks to a very high range of rotational speed: highly viscous and thin products and CIP cleaning with just one pump
• Low-shear and gentle product pumping – even lumpy products – through axial pumping with no change of direction
• Virtually pulsation-free – ideal pumping characteristics
• Very good suction performance
• Maximum hygiene with form rings, high surface quality (RA < 0.8 μm) and a design with no dead space
• Very good cleaning and sterilisation capacity thanks to optimal flushing channels, CIP / SIP-compatible
• Wear-free operation thanks to contactless pumping elements
• Can be run dry with flushed mechanical seal
• High-quality, precisely manufactured components for optimal gaps, extremely smooth running and low wear
• Easy to service and maintain
ACCESSORIES | OPTIONS
• Heating and cooling jacket
• Customised intake, e.g. rectangular
• Mobile installation
• Surface quality < 0.4 μm
• Additional wear protection with surface treatment
CERTIFICATES
• FDA, 3A or EHEDG

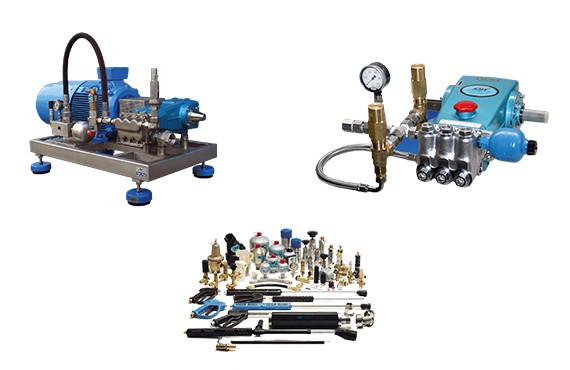

CUSTOMISED HIGH-PRESSURE PUMPS AND HIGH-PRESSURE UNITS
We make complete high-pressure units and/or pump-motor units to meet customers’ needs. If you order a complete solution from us (e.g. pumps – nozzle – control unit), all system components (pump unit, control system, nozzles, fittings) are coordinated and thoroughly tested in our factory before delivery. In this way, you can ensure that all components are working properly on commissioning and deliver the desired results.

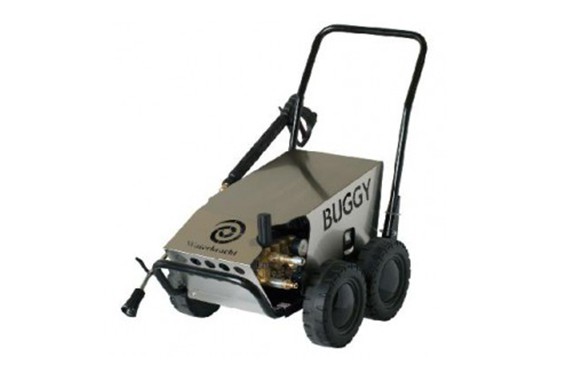

STANDARD HIGH-PRESSURE UNITS AND HIGH-PRESSURE CLEANERS
Mobile and stationary high-pressure cleaners for continuous operation.
Our units have been specially designed for industrial use. Their compact design saves a lot of space. With our integrated electrical control system, devices are ready for connection. A very long service life is achieved for wear parts by using high-quality components.
ADVANTAGES AT A GLANCE
• Suitable for 24-hour operation
• Suitable for service water
• Can be run dry
• Very long service life for wear parts

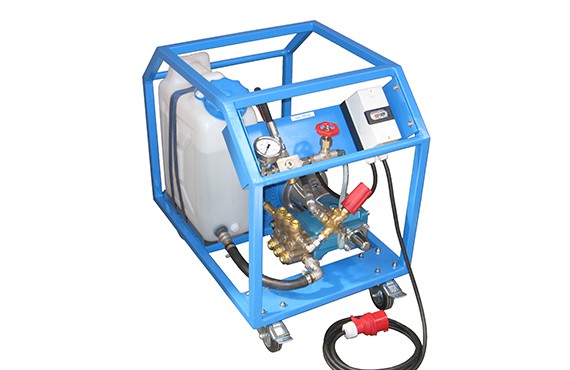

ELECTRICAL PRESSURE TESTING DEVICES
The device is ready for operation with a filled tank. The device can be started and stopped with the protective motor switch. The pressure in the test block is raised slowly by turning the handwheel on the pressure control valve until the test pressure required is reached. The pressure can be read on the integrated manometer. When the test pressure is reached, the device is stopped by actuating the protective motor switch. The pressure that has been generated is maintained by the check valve installed in the test block, until the pressure relief valve (needle valve) is opened.
HIGH-PRESSURE PUMP
• Corrosion-resistant brass pump head
• Hard ceramic plunger (solid)
• Valves, valve seats and springs in stainless steel
• Seals made of special material
• Integrated leakage return
• Cast aluminium crank housing
• Forged crankshaft made of CrMo steel
• Designed to be easy to maintain
OPTIONS
• 5 m high-pressure hose with 3/8” external thread
• 5 m high-pressure hose with 1/2” external thread
• Mobile device, with 2 fixed castors and 2 swivel castors
DEVICE COMPONENTS
• 3-phase or alternating current standard motor
• Pressure control valve
• Pressure release cock for releasing pressure from test block
• Pressure relief valve (as a safety device to prevent excess pressure)
• Manometer
• Check valve to maintain pressure in the test piece
• Protective motor switch with button to switch the device on and off
• Base frame
• 3 m cable with standard plug (16 A CEE or Schuko plug)
• Supply tank (20 litres) with float valve
TANK CLEANING – HIGH PRESSURE
RANGE OF APPLICATIONS
• Food industry
• Wine and drinks industry
• Pharmaceutical industry
• Chemical industry
• Internal cleaning of tankers (lorries and rail)
• Waste management
• IBC cleaning
MATERIALS
• Stainless steel 1.4305 and 1.4401
• Aluminium

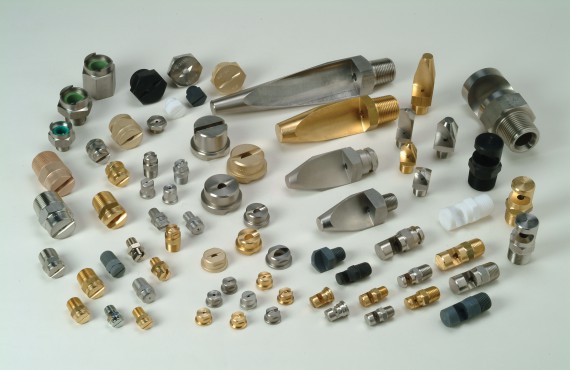

GENERAL NOZZLE TECHNOLOGY
We are a reliable partner, offering high-quality nozzles and tank washing heads on the one hand, while our technology is the perfect choice for professional engineering services on the other. Coordination of the individual components, from the pump to the nozzle, is extremely important in terms of process technology. We provide complete pump nozzle solutions and avoid any interfaces with our own control system design. Every system undergoes a 100% check on the test stand and a functional test. We supply replacement nozzles for all reputable nozzle manufacturers and guarantee perfect operation of the existing system.
RANGE OF APPLICATIONS
• Steel industry
• Food industry
• Drinks industry
• Pharmaceutical industry
• Chemical industry
• Paper and cellulose industry
• Oil, gas and petrochemicals
• (Exhaust) gas scrubbing and cleaning
• Surface technology
• Dust control
• Emissions protection
• (Waste) water treatment
• Agricultural industry
• Textile and leather industries
• Mining
PRODUCT RANGE
• Flat spray nozzles
• Full cone nozzles
• Hollow cone nozzles
• Spot jet nozzles
• Hydraulic atomiser
• Compressed air atomiser
• Spray drying nozzles
• Mixed ejectors (Venturi nozzles)
• Fire safety nozzles
• Pipe clips
• Ball joints
• Filters
• Assembly accessories
• Fittings
• Customised spray nozzles

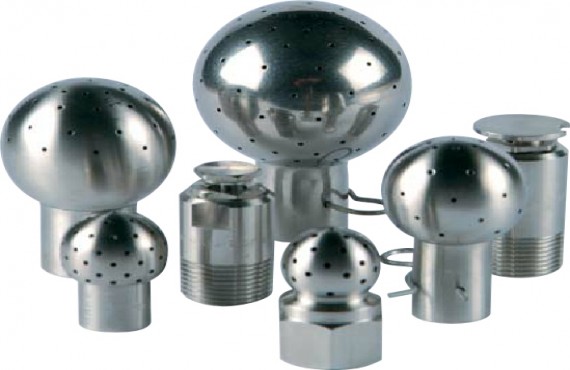

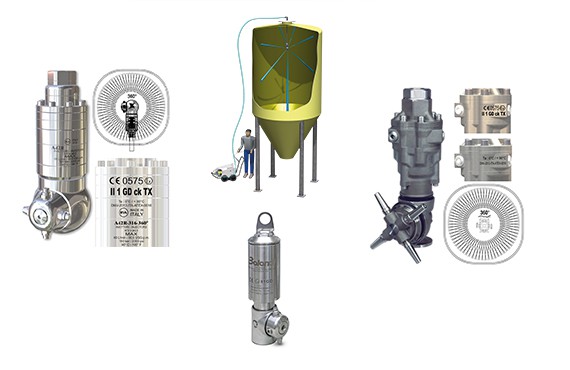

TANK WASH HEADS – LOW PRESSURE
Professional cleaning of anything from canisters to tank wagons, and from waste management to the pharmaceutical industry.
RANGE OF APPLICATIONS
• Food industry
• Drinks industry
• Pharmaceutical industry
• IBC cleaning
• Chemical industry
• Waste management
• Dye and paint industries
MATERIALS
• Stainless steel 1.4305 and 1.4404, Hastelloy C22
• PTFE, conductive PTFE, PVDF
CERTIFICATES
• 3A, ATEX, surface roughness

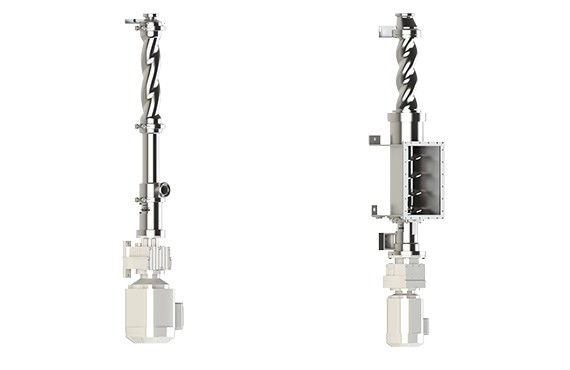

ECCENTRIC WORM PUMPS
Thanks to their modular structure and robust design, our eccentric worm pumps are just as suitable for applications in the hygiene sector as for the chemical, dye, paint and paper industries. The pump is also ideal for other sectors of industry in which gentle, low-pulsation pumping is important. Material selection, structural arrangement of the O rings and surface quality are also available in accordance with EHEDG guidelines as an alternative. A particular feature of these eccentric worm pumps is their use of EvenWall® technology. The stator jacket is adapted to the inner contour of the elastomer and provided with an even elastomer coating that is 4 to 12 mm thick. This delivers significantly higher pressure stability.
