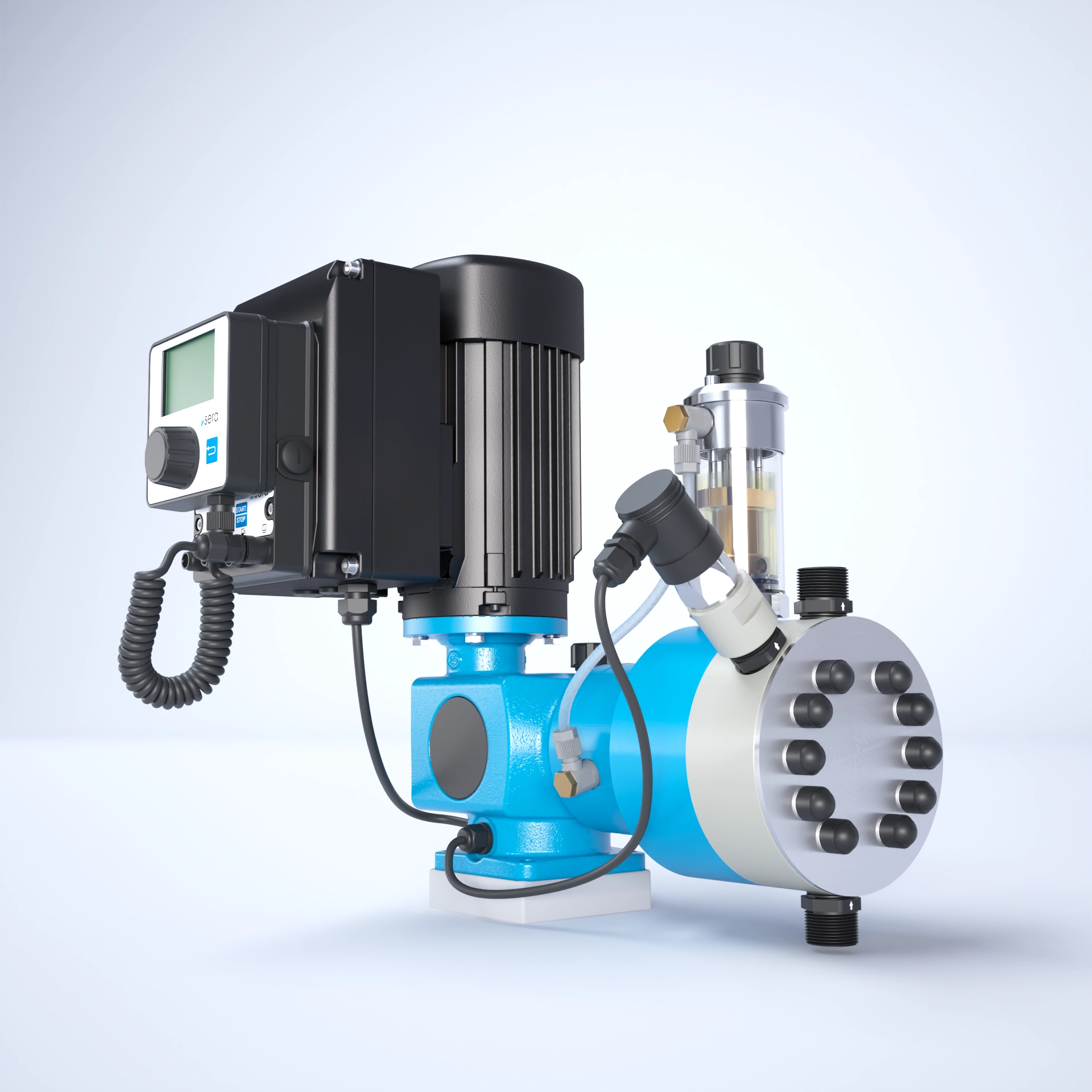

Piston diaphragm pumps type C409.2 KM, controllable
sera piston diaphragm pumps type C409.2-KM are leakage-free oscillating positive displacement pumps. They ideally combine the high delivery pressure of a piston pump with the perfect tightness of a diaphragm pump.
- Max. operating pressure
- 80 bar
- Flow rate
- 10 l/h until 190 l/h
-
Structure and function
Each drive unit consists of a tried-and-tested motor, coupled with a reciprocating gear mechanism within a robust housing. sera housings are designed to withstand even the harshest operating conditions. The material thickness and surface treatment ensure resistance even to chemical attack. The flow rate is constant or infinitely variable. In the adjustable version, this is done manually by changing the stroke length. Automatic flow rate adjustment can be achieved via the following options:
The dosing pumps can be equipped with a choice of two different electronic control systems (Pro or Pro+).
(For details, see Downloads – Product Information)Servo motors with positioners for automatic stroke length adjustment

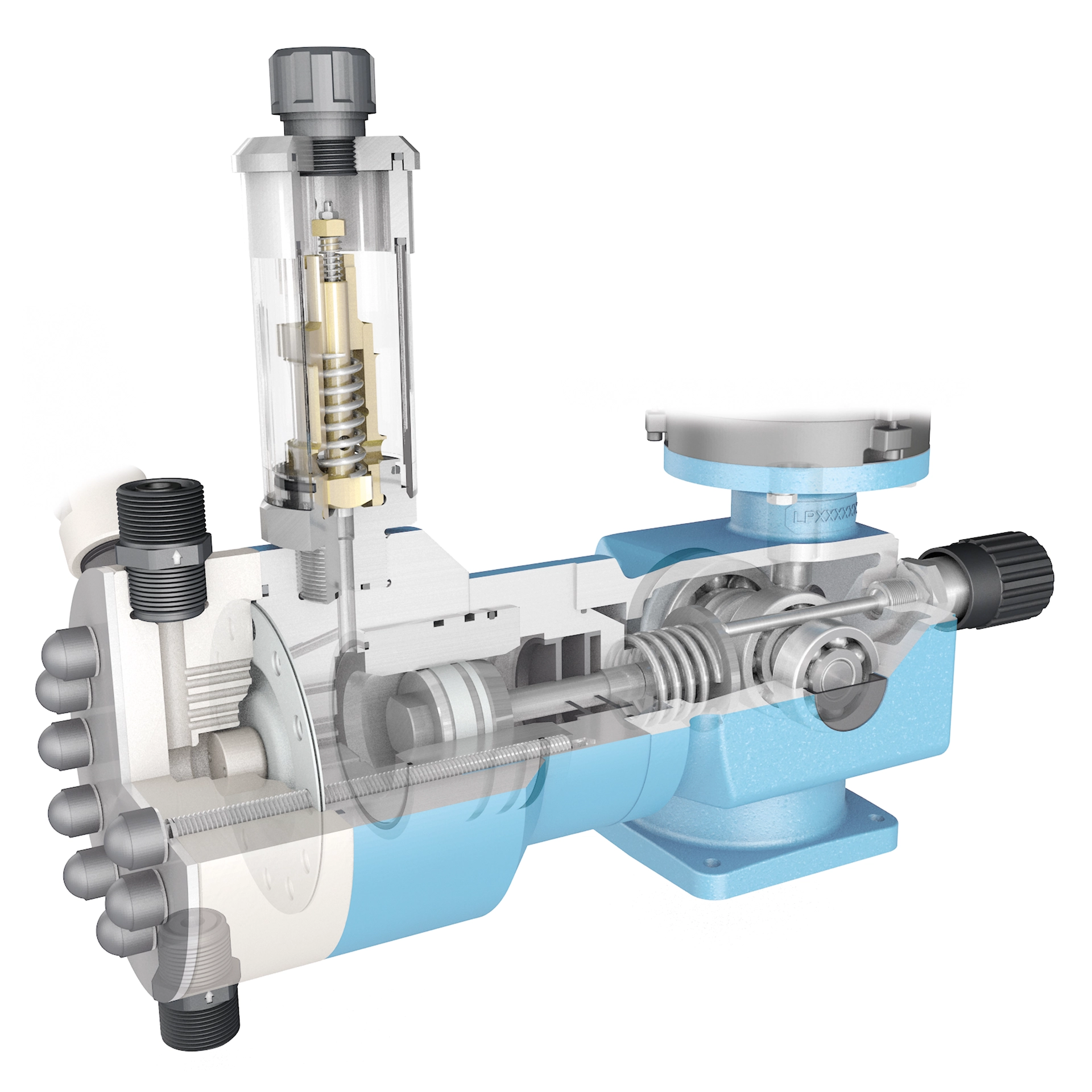

- Drive motor
- Housing
- Stroke length adjustment
- Hydraulic compensation valve
- Multilayer diaphragm
- Diaphragm monitoring (with pressure switch)
- Pump body
- Suction and pressure valve
- Control electronics
-
Materials and options
The optimal material is available for every dosing medium!
- Valve balls: 1.4401, Hastelloy, PTFE
- Valve seal: EPDM, FEP-coated, FPM
- Operating diaphragm: PTFE (3 layer)
- Pump body and valves: 1.4571, Hastelloy, PP, PP-FRP, PVC-U, PVDF, PVDF-FRP, Titanium
-
Available versions
Various models are available. Customized models can be requested via our contact form.
Type Q (at 50 Hz) p/ max. C409.2-10KM Pro 0-10 l/h max. 80 bar C409.2-10KM Pro+ 0-10 l/h max. 80 bar C409.2-18KM Pro 0-18 l/h max. 50 bar C409.2-18KM Pro+ 0-18 l/h max. 50 bar C409.2-45KM Pro 0-45 l/h max. 25 bar C409.2-45KM Pro+ 0-45 l/h max. 25 bar C409.2-7,5KM Pro+ 0-7.5 l/h max. 80 bar C409.2-7,5KM Pro 0-7.5 l/h max. 80 bar C409.2-95KM Pro 0-95 l/h max. 16 bar C409.2-95KM Pro+ 0-95 l/h max. 16 bar C409.2-190KM Pro 0-190 l/h max. 8 bar C409.2-190KM Pro+ 0-190 l/h max. 8 bar -
Specification
Bus connection possible [Profibus/Profinet]
-
