CLEAN - SAFE - RELIABLE
sera AG series reciprocating compressors are used in a wide range of applications in areas such as residential areas, neighbourhoods and industrial energy solutions. In autonomous energy systems, the piston compressor plays an important role by compressing hydrogen to enable long-term storage.

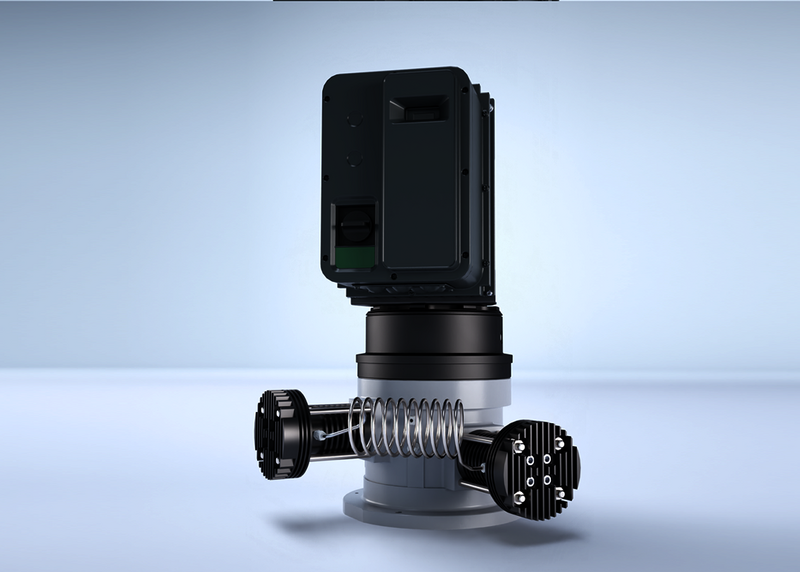

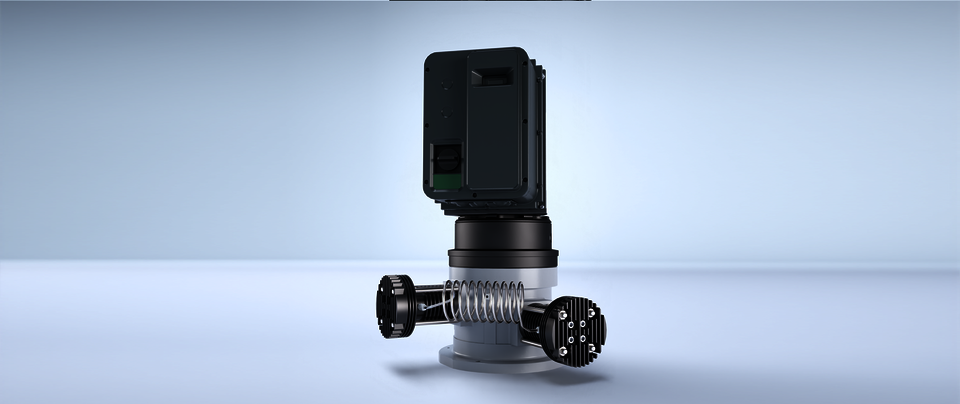

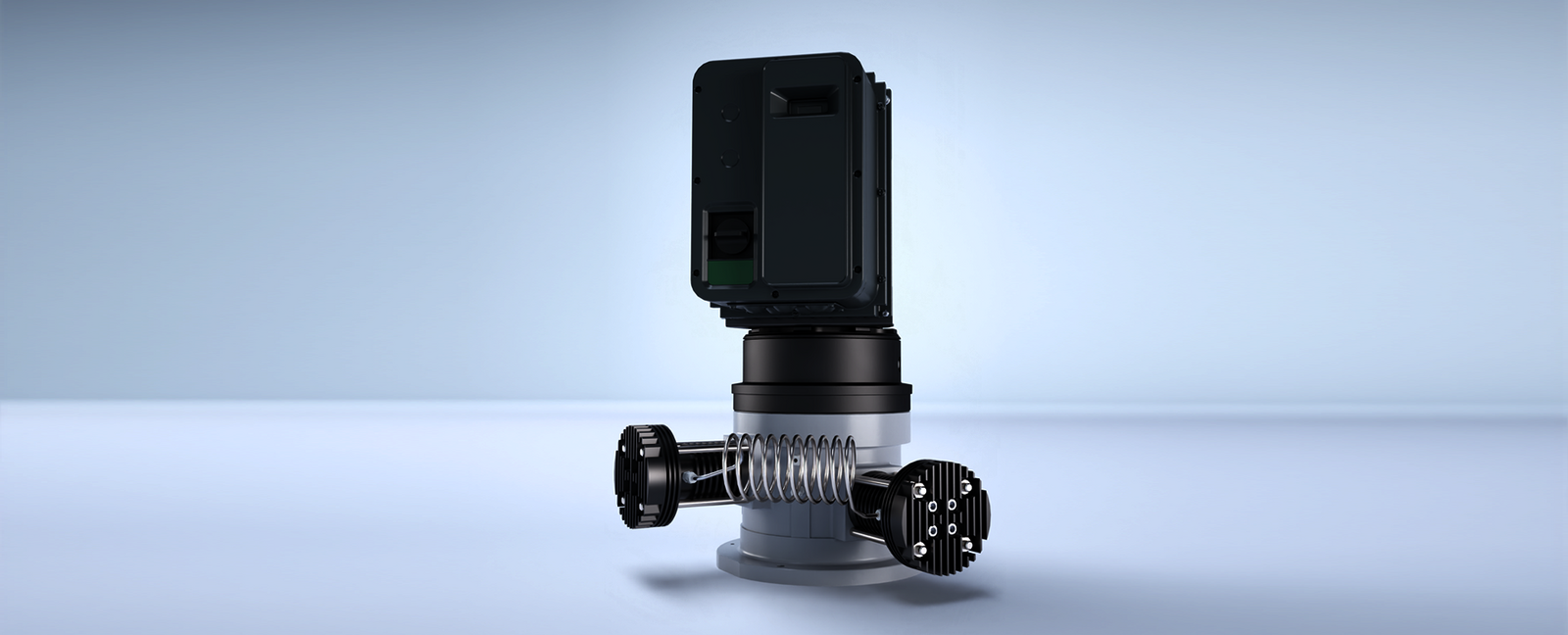

This dry-running, two-stage piston compressor is air-cooled and has been specially developed for operation with hydrogen 5.0.
The simple installation and user-friendly design make the piston compressors the ideal choice for your systems.
Find out more about the sera piston compressor in the product information.
Advantages
-
Simple installation
Easy installation and user-friendly design for effortless integration into the system.
-
Low noise
Low-noise operation - ideal for use in residential areas and sensitive environments.
-
Flexibly expandable
Modularly expandable - flexibly customisable by integrating additional compressors.
APPLICATION AREAS
- Home Power Applications
- District and quarter supply
- Power and heat applications
- Series production
TECHNICAL DATA
- Gas: H2, dry, free of solids
- Inlet pressure: 25-30 bar(g)
- Outlet pressure: max. 300 bar(g)
- Ambient temperature: -10°C to +40°C
- Delivery rate: ≥ 2.0 Nm3/h from 30 to 300 bar(g) final pressure
- Air-cooled
- Protection class: IP55
Modular Energy System

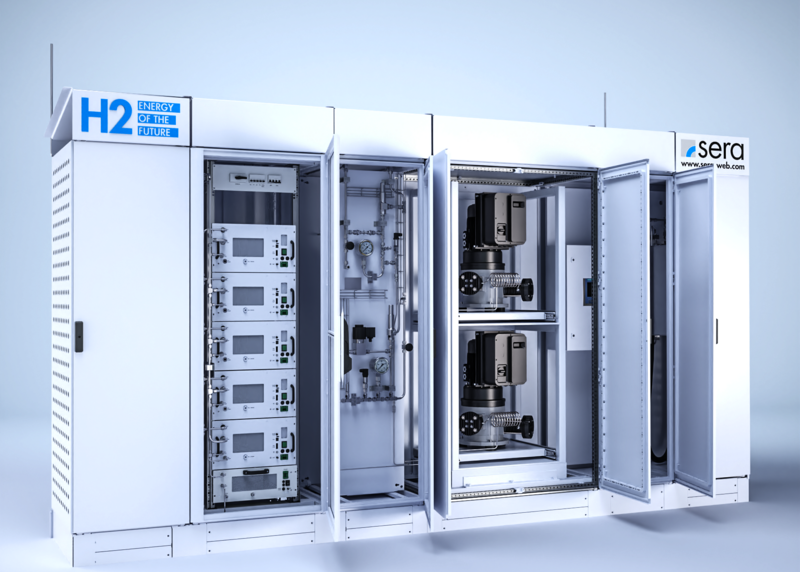

The sera Modular Energy System is the link between electrolyser and fuel cell.
It compresses hydrogen to up to 300 bar as required, which increases the energy density of the medium and requires less storage space while maintaining the same amount of energy.
Advantages:
- Compact design
- Reuse of the leakage gas
- Hermetically sealed
- Low power consumption
- Low noise emission
